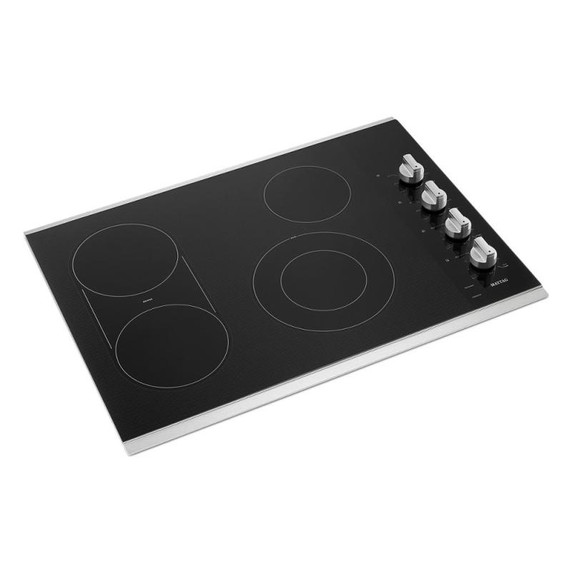

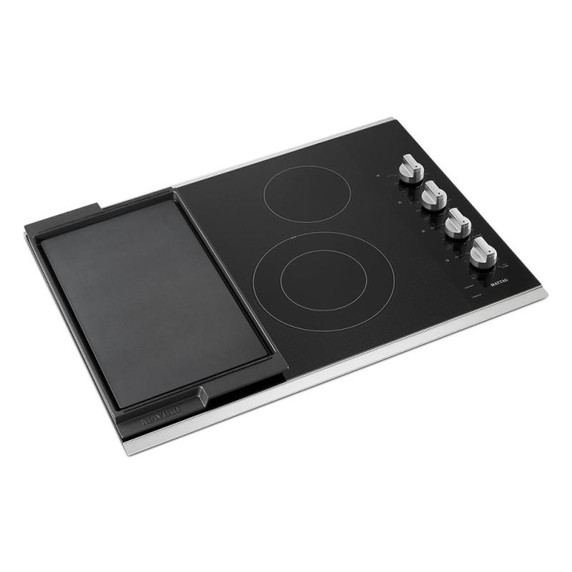

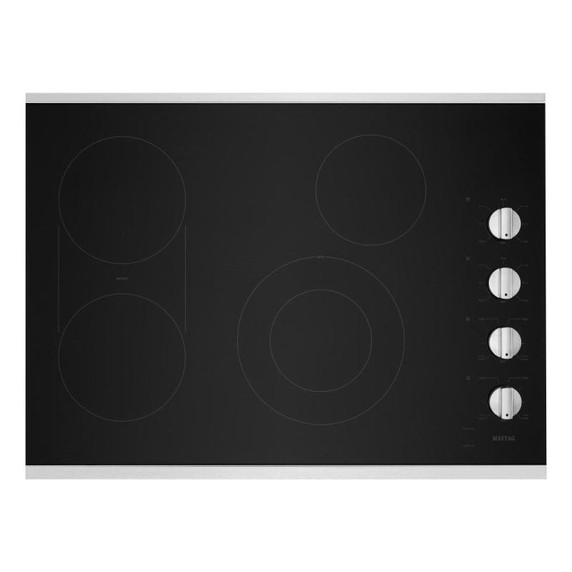

Maytag® Exclusive Electric Cooktop with Reversible Grill and GriddleBoil, pan fry, grill, sear, flip and griddle. No matter what you're bringing to the table, Maytag brings the heat with an exclusive electric cooktop with the reversible grill and griddle.

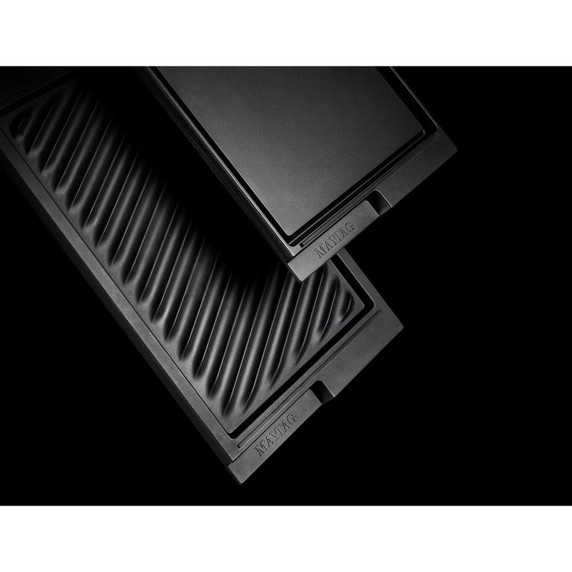

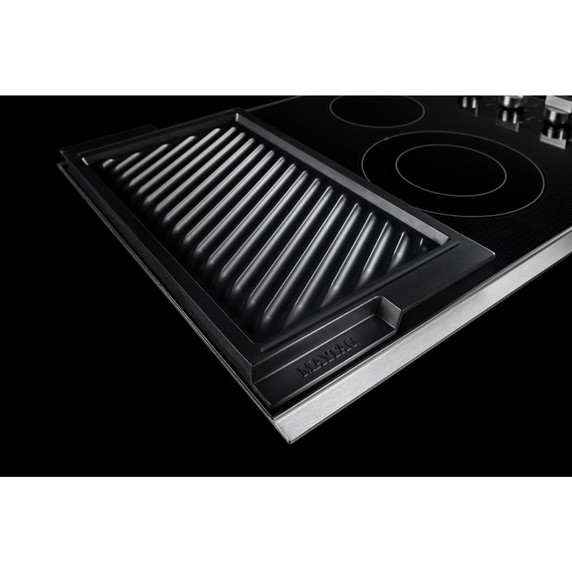

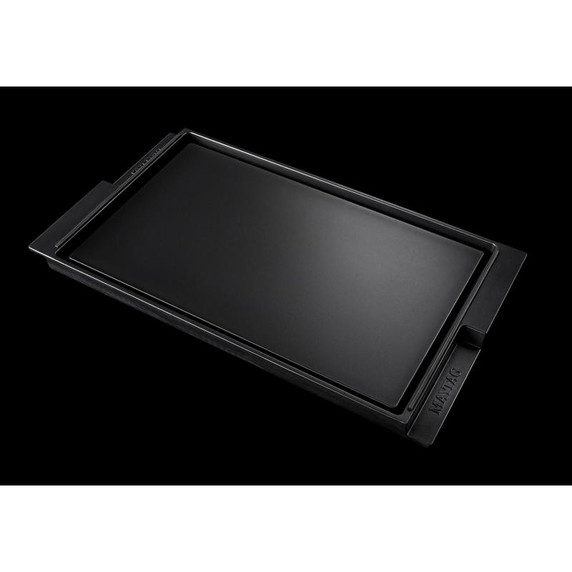

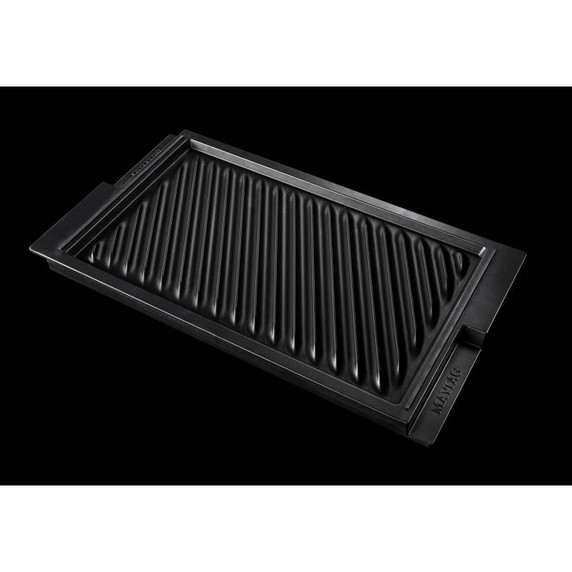

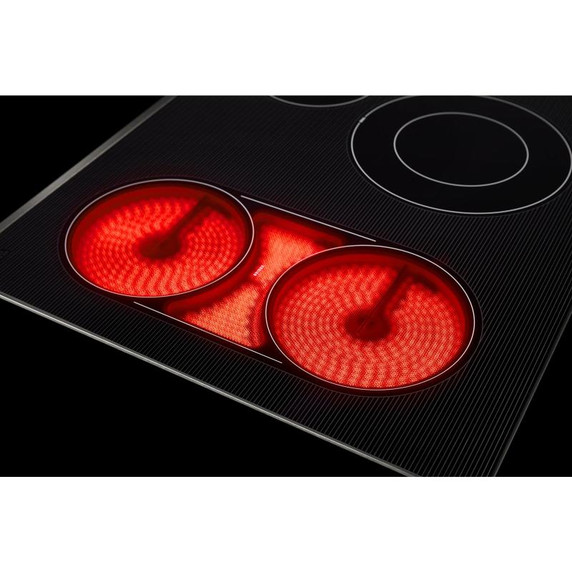

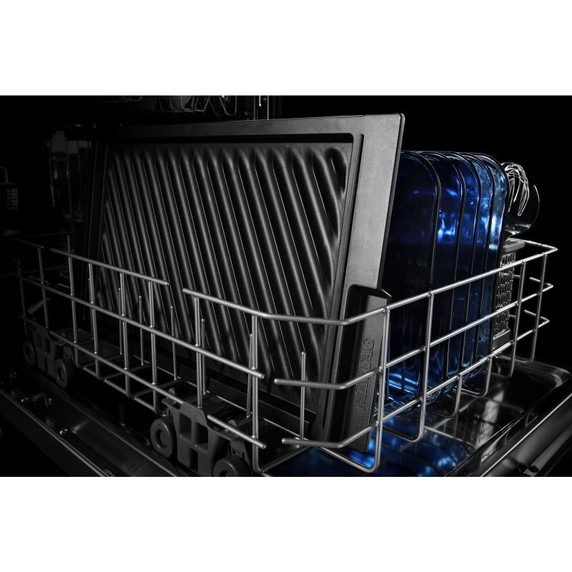

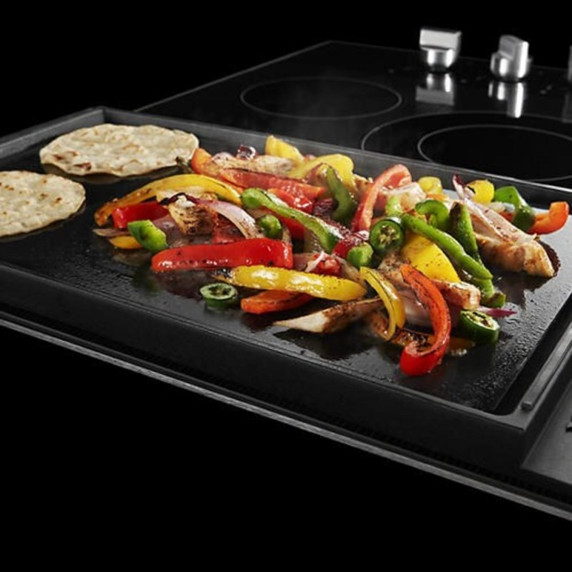

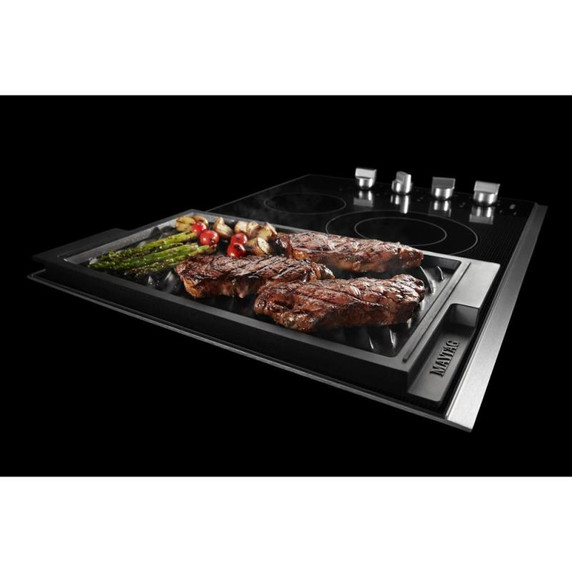

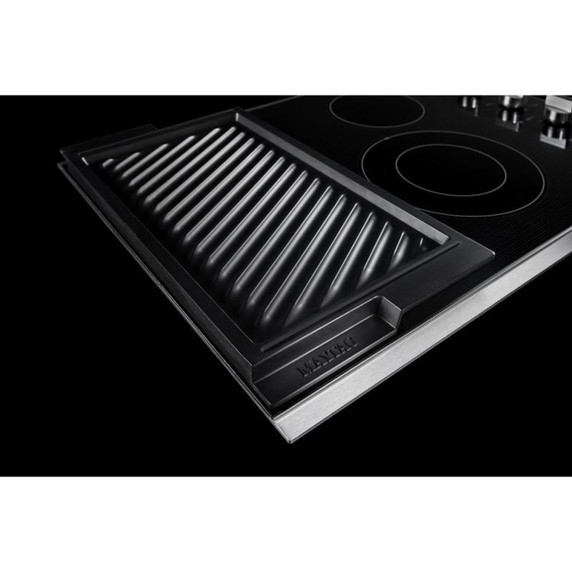

Reversible Grill and GriddleCrank up the bridge element with the reversible grill and griddle for grilling burgers and flipping stacks of pancakes. Throw the pan into the dishwasher for easy cleanup. Rubber grips reduce slipping and scratching to ensure safe placement on the cooktop.

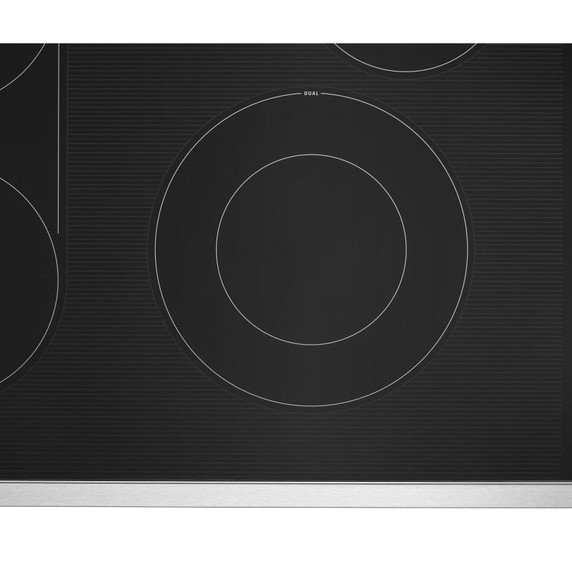

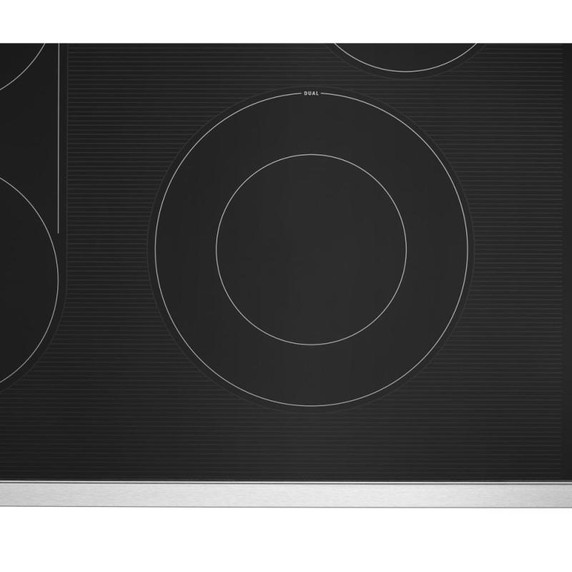

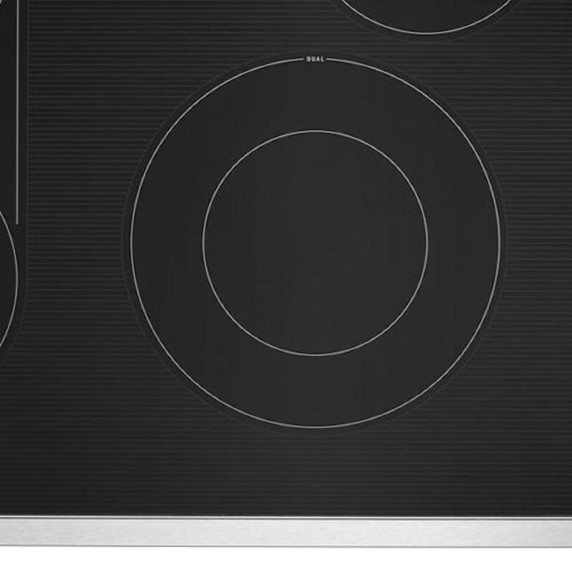

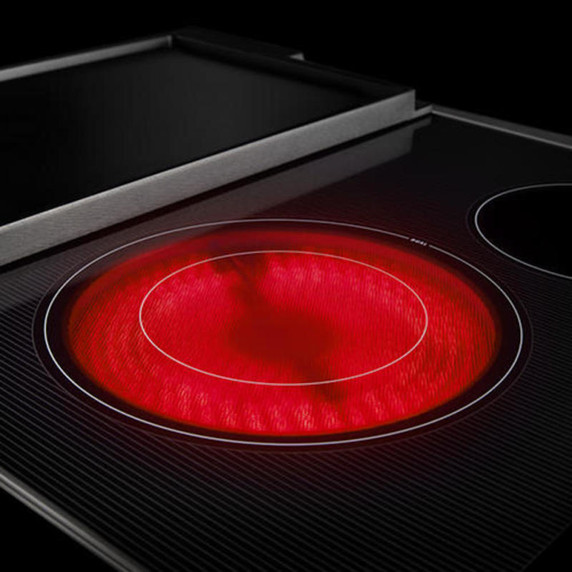

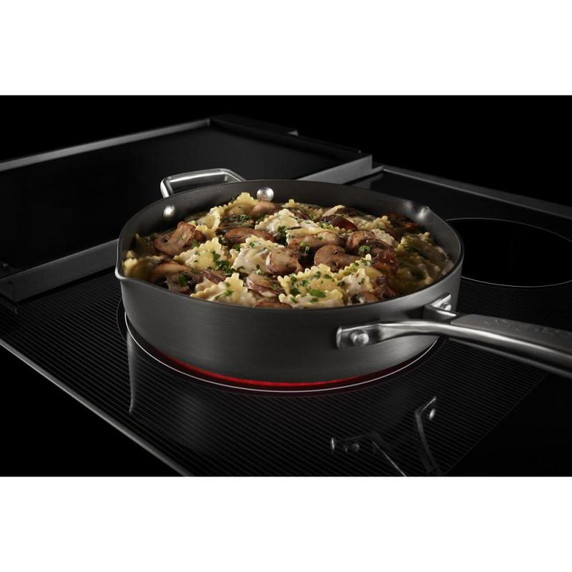

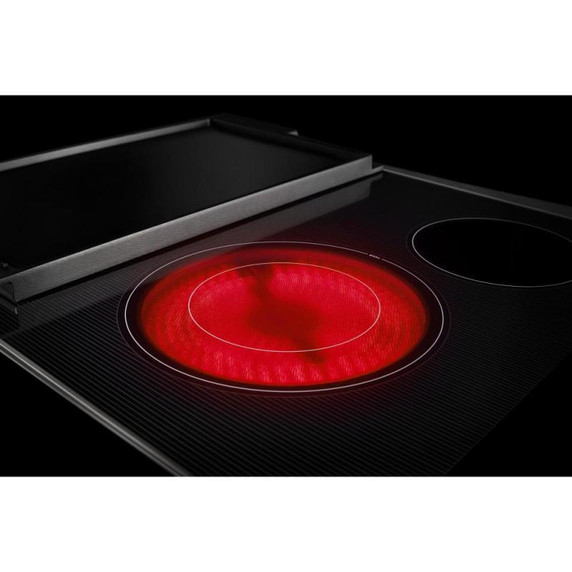

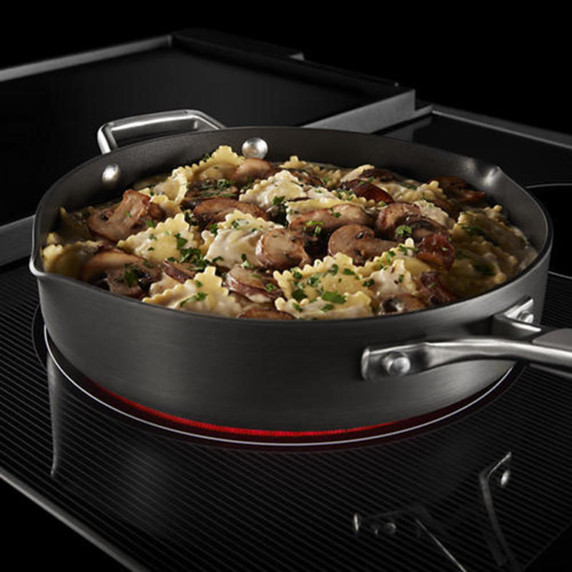

10/6-inch Dual-Choice™ ElementThe 10/6-inch Dual-Choice™ element gives you the ability to cook with the pan you want and the power you need. Control a slow, even sauté and then intensify the heat for searing.
10-Year Limited Parts Warranty on the Glass Cooktop and ElementsWe back these Maytag® cooktops for cooking you can count on year after year with a 10-year limited parts warranty on the glass cooktop and elements.

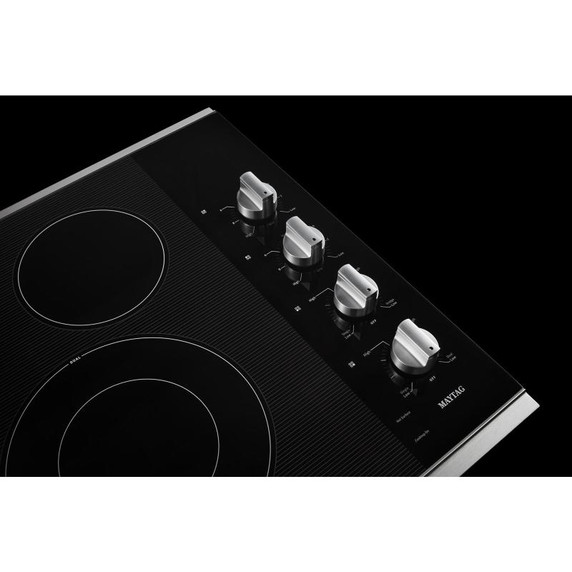

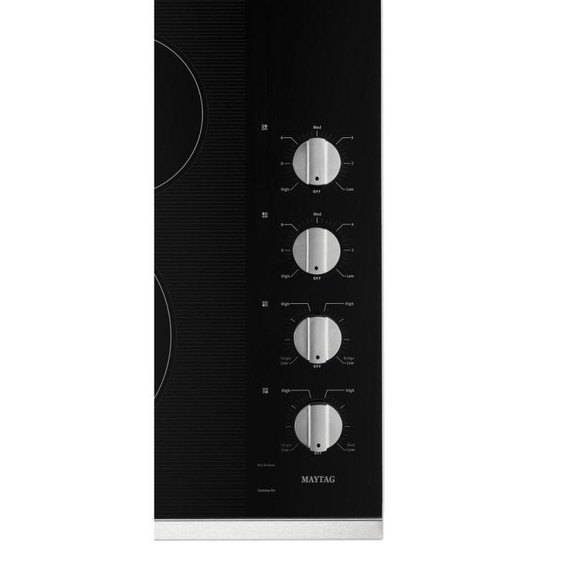

Heavy-Duty, Die-Cast Metal KnobsBuilt with heavy-duty, die-cast metal knobs to give you dependable and responsive power control.
Quick Preheat and Precise Cooking CoverageThe reversible grill and griddle evenly distributes heat across a large surface. It preheats to 350ºF quickly for meals that hit the table fast.
An American Company for Over 100 YearsAs a long-standing American company, we pack over a century of knowledge, experience and dependability into every product.
Hot Surface Indicator LightIlluminates when the cooktop surface is hot to the touch, even after the heating element has been turned off.

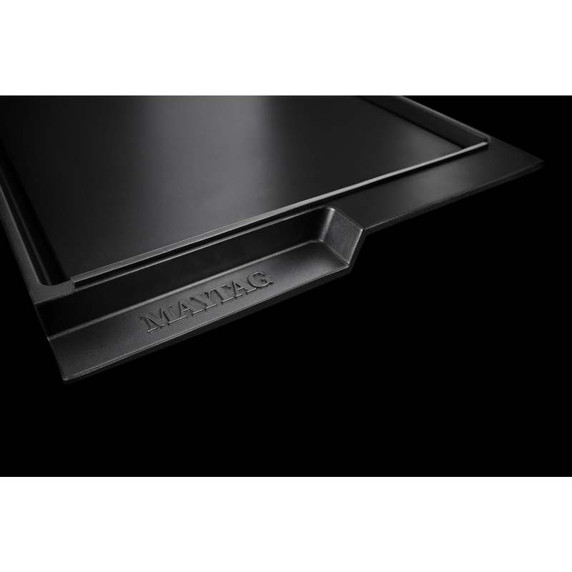

Flip and Grip Built-In HandlesWhen making the flip between grill and griddle, two built-in handles provide hassle-free movement to and from the cooktop.
Country Of OriginUSA
Product To Product PairsUVL5430JSS
Extended Service Plan ParentEW05IW2Y
Optional AccessoriesW10355051B
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
ULYes
ADA CompliantYes
Right Front Element Burner TypeDual
Cooktop Element StyleCeran
Number Of Cooking Element Burners4
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Left Front Element Burner Size8in.
Cooktop ConfigurationBurners with Integrated Grill and Griddle
Left Front Element Burner Power1800W
Left Front Element Burner TypeBridge
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Left Rear Element Burner TypeBridge
Right Front Element Burner Power3000W/1900W
Right Front Element Burner Size10in./6in.
GriddleYes
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Fuel TypeElectric
Size In30
Cooktop TypeTraditional
Combinations With OvenMEW9530; MEW9527
Control TypeManual
Knob TypeMetal
Control LocationSide
May CooktopADA Compliant

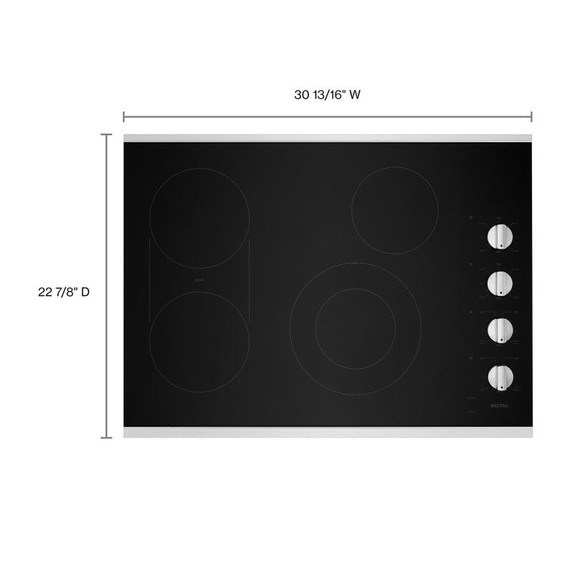

Depth22.88"
Height5.25"
Maximum Height5.25"
Net Weight54.0 Kg.
Width30.81"
Cutout Depth20.36"
Cutout Width29.06"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch35.0
