5-in-1 OvenCook however you want with 5 cooking modes in 1 oven: Air Fry, Convect Bake, Broil, Frozen Bake™ and Bake cycles. This range gives you the flexibility to cook a variety of dishes by combining multiple cooking modes into one oven.

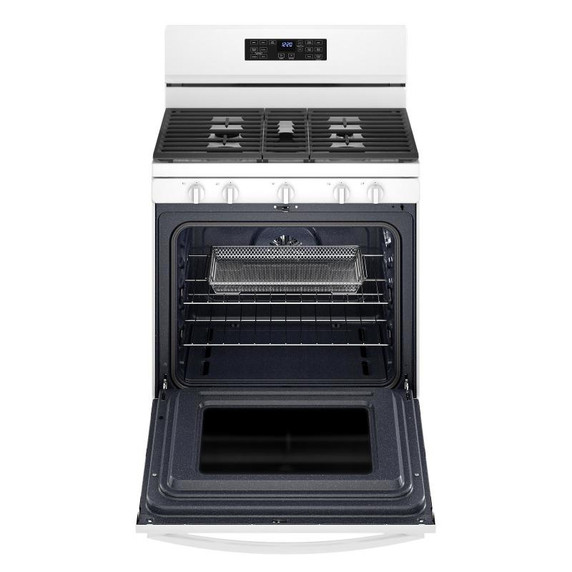

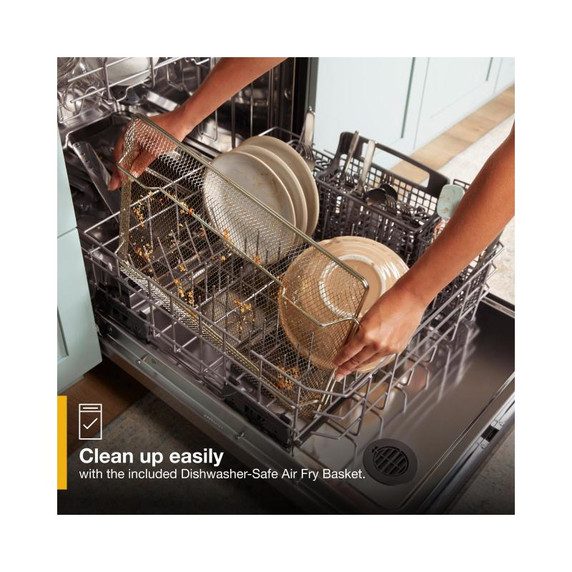

Air Fry ModeAir fry chicken nuggets, wings, fries and more of your favorite foods to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.

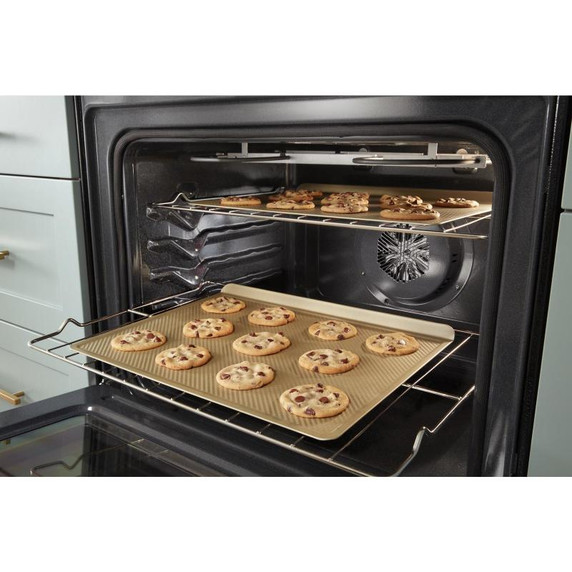

Fan Convection CookingBake multiple items at once with Fan Convection Cooking. The oven fan circulates hot air from two heating elements around the oven so you don't have to move dishes around as you cook.

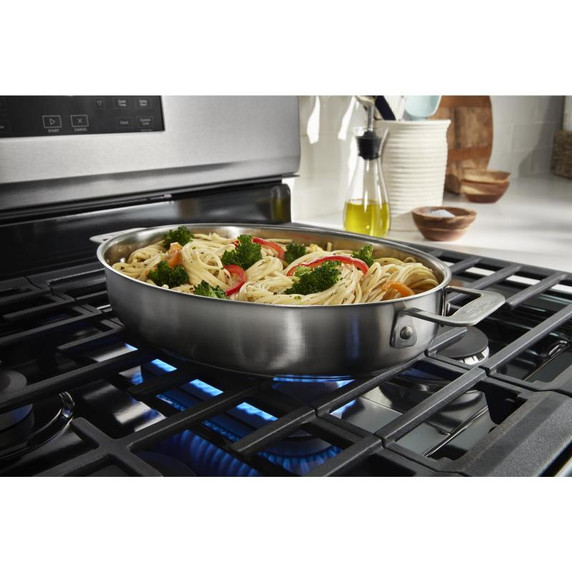

SpeedHeat™ BurnerGet dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.
Adjustable Self-CleaningTake on all kinds of messes in the oven with cleaning settings for light, moderate or heavy soils.
Center Oval BurnerEasily fit large griddles and other longer cookware on this fifth burner.
5.0 Cu. Ft. CapacityEasily cook large meals with 5.0 Cu. Ft. Capacity.

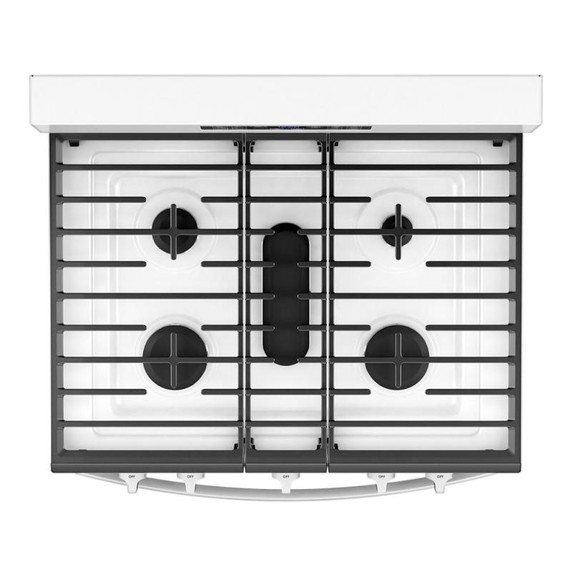

Edge-to-Edge Cast-Iron GratesGet more space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean the controls.
Broil SettingWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.

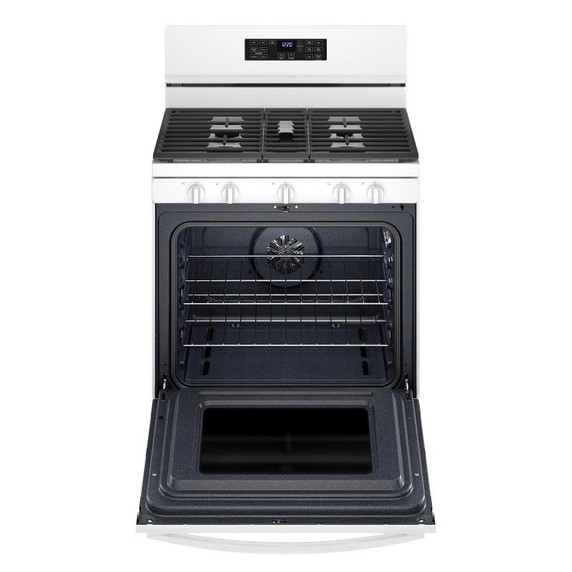

Hidden Bake ElementA hidden bake element under the floor of the oven creates a smooth surface inside the oven that’s easier to clean.
Storage DrawerA Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
Sabbath ModeAllows you to override the oven's automatic shut-off function, keeping it active for hours of uninterrupted cooking. This makes it possible to use the oven on the Sabbath without turning it on.
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Product To Product PairsUVL5430JSS
Extended Service Plan ParentEW06IW2Y
Optional Accessories4396096RB
Hz60
Amps15
Power Cord IncludedYes
ULYes
ADA CompliantNo
CULYes
Handle MaterialMetal
Door RemovableYes
Handle TypeReach Through Handle
Drawer TypeStorage Drawer
Handle ColorWhite
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront

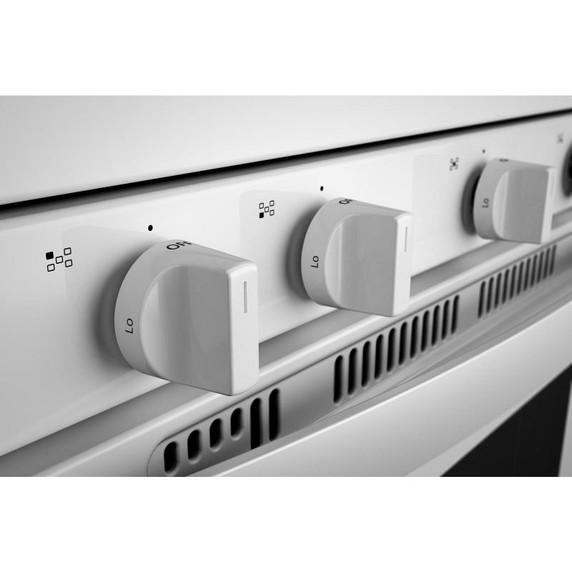

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Number Of Grates3
Left Rear Element Burner TypeStandard

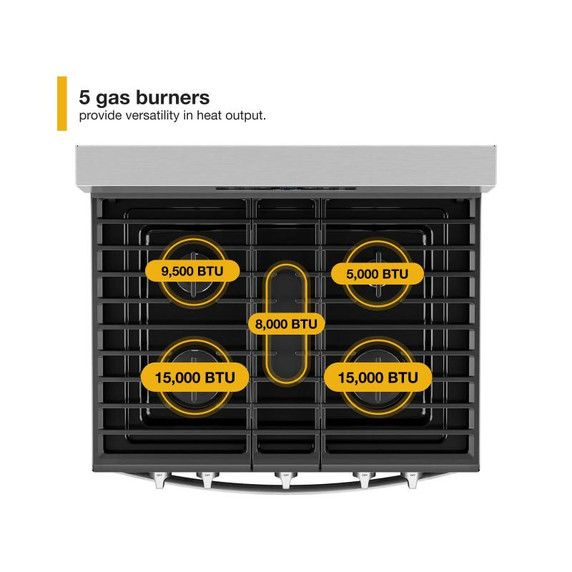

Number Of Cooking Element Burners5
Center Front Element Burner TypeStandard
Left Front Element Burner Power15000BTU
Left Front Element Burner TypeHigh Output
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Right Front Element Burner TypePower
Ignition TypeDirect Spark Ignition
Center Front Element Burner Power8000BTU
Grate DetailsPorcelain Coated Cast Grates; Dishwasher Safe; Matte Finish; Continuous
Heating Element On Indicator LightYes
LP ConvertibleYes
Hot Surface Indicator LightYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
GriddleNo, Optional Accessory
Total Gas Btus Oven S26,500
SelectionAudible Signal; Air Fry; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Sabbath Mode; Stop Time; Timer
Total Gas Btus Cooktop52,500
Automatic Shut OffNo
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorBlack
Oven Cleaning TypeSelf-Clean
Number Of Oven Racks2
Number Of Rack Guides5
Oven Cooking SystemConvection
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent

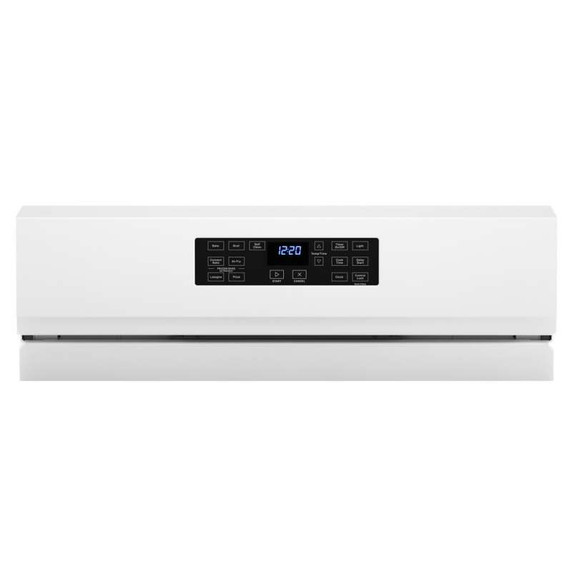

Oven Control TypeElectronic Touch
Oven Control Knob ColorWhite
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Oven Light Switch LocationTop of Console
Broiler Element Power10000BTU
Oven Rack TypeStandard
Size In30
Range TypeFreestanding
Knob TypePlastic
Electronic Display TypeLED
Knob ColorWhite
Oven DoorGlass
Fuel TypeGas
Connectivity
Works With
Whr RangeAir Fry
Carton Depth29"
Carton Height48.75"
Carton Width32"
Depth Closed Excluding Handles25.44"
Depth Closed Including Handles27.88"
Depth With Door Open 90 Degree46.5"
Depth27.88"
Gross Weight200 Kg.
Height47.88"
Maximum Height47.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.00
Minimum Height46.88"
